Mantis + Dokuwiki + Subversion + Active Directory - Part 4

Install Subversion & WebSVN (Apache httpd + Active Directory Authentication)

1. 安裝 Subversion

#
# 用 yum 簡單的安裝 Subversion
#
yum -y install subversion mod_dav_svn

#
# 假設:
# 1. Subversion 的 repository 都放在 /var/www/svn 底下
# 2. 建立一個 test repository
#
mkdir -p /var/www/svn
svnadmin create /var/www/svn/test
chown -R apache.apache /var/www/svn

2. 設定 Apache httpd, 並使用 Active Directory 認證

建立 /etc/httpd/conf.d/subversion.conf

#
# 假設:
# 1. Windows AD Server: 192.168.1.1
# 2. Windows 隨便一個 Domain User: MyCompanyDomain\OneDomainUser
# 3. Windows 上面這個 Domain User 的密碼是: rtcgxqxcwrgcfr
# 4. Windows AD 裡面的帳號都放在 Users 這個 CN 底下: cn=users,dc=mycompany,dc=com
#
cd /etc/httpd/conf.d
cp subversion.conf subversion.conf.`date +"%Y%m%d%H%M%S"`
cat << EOF > subversion.conf

LoadModule dav_svn_module modules/mod_dav_svn.so
LoadModule authz_svn_module modules/mod_authz_svn.so

<Location "/svn/">

  SSLRequireSSL on
  Require valid-user

  DAV svn
  SVNParentPath /var/www/svn
  SVNListParentPath on
  SVNAutoversioning on

  AuthBasicProvider ldap
  AuthType Basic
  AuthzLDAPAuthoritative on
  AuthName "Subversion Repository"
  AuthLDAPURL "ldap://192.168.1.1:389/cn=Users,dc=mycompany,dc=com?sAMAccountName?sub?(objectClass=person)" NONE
  AuthLDAPBindDN "MyCompanyDomain\OneDomainUser"
  AuthLDAPBindPassword rtcgxqxcwrgcfr
  AuthzSVNAccessFile /etc/svn/accessfile

</Location>
EOF

#
# 重新啟動 httpd (subversion.conf 有任何修改, 都必須重新啟動 httpd)
#
service httpd restart

建立 /etc/svn/accessfile

#
# 讓任何 Domain User 皆有 Read 的權限
#
mkdir -p /etc/svn
cd /etc/svn
cat << EOF > accessfile
[/]
* = r
EOF

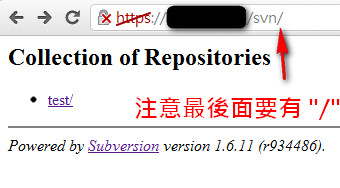

測試是否可以正常運作

打開瀏覽器輸入網址 https://<mantis's hostname or ip>/svn/ (註: svn 後面一定要有 "/")
瀏覽器會彈出認證視窗, 請輸入任一個 Windows Domain User

SVN Test

3. 安裝 WebSVN

#
# 假設 WebSVN 版本是 2.3.3, 檔名是 websvn-2.3.3.tar.gz
#
cd ~
wget http://websvn.tigris.org/files/documents/1380/49056/websvn-2.3.3.tar.gz
cd /var/www/html
tar -xvzf ~/websvn-2.3.3.tar.gz
mv websvn-2.3.3 websvn
chown -R apache.apache websvn

建立 /etc/httpd/conf.d/websvn.conf

#
# 假設: 認證授權的設定都跟上面的 Subversion 一樣
#
cd /etc/httpd/conf.d
cat << EOF > websvn.conf
<Location /websvn/>

  SSLRequireSSL on
  AuthType Basic
  AuthName "Subversion Repository"
  Require valid-user

  AuthBasicProvider ldap
  AuthType Basic
  AuthzLDAPAuthoritative on
  AuthName "Subversion Repository"
  AuthLDAPURL "ldap://192.168.1.1:389/cn=Users,dc=mycompany,dc=com?sAMAccountName?sub?(objectClass=person)" NONE
  AuthLDAPBindDN "MyCompanyDomain\OneDomainUser"
  AuthLDAPBindPassword rtcgxqxcwrgcfr
  AuthzSVNAccessFile /etc/svn/accessfile

</Location>
EOF

建立 /var/www/html/websvn/include/config.php

cd /var/www/html/websvn/include
cp distconfig.php config.php
cat << EOF >> config.php
$config->setSVNCommandPath('/usr/bin');
$config->parentPath('/var/www/svn');
$config->useAuthenticationFile('/etc/svn/accessfile');
EOF

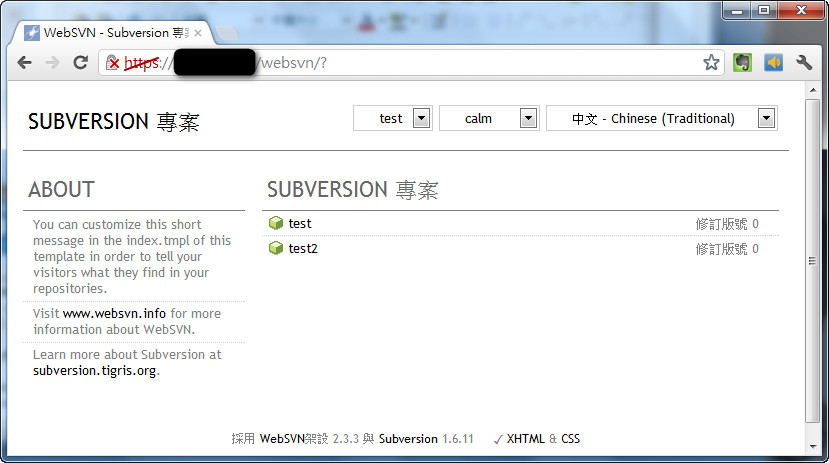

WebSVN

4. 修正 WebSVN 的 Bug (可能是吧 ^^)

WebSVN 在列出版序記錄時, 有時候會出現以下錯誤:

PHP Fatal error: Allowed memory size of xxxxx bytes exhausted (tried to allocate xxxxx bytes) in /var/www/html/websvn/include/svnlook.php on line 460

筆者本來以為是 php 的 memory_limit 太小所致, 後來即使把 memory_limit 調整到 512M, 1024M, 甚至 2048M, 上述錯誤還是時常會發生 (表示筆者的專案很認真的頻繁修改, 導致版序過多? ^^), 目前又沒時間去研究 root cause, 於是就偷懶一下, 修改 WebSVN 的 svnlook.php, 以避開上述問題.

#
#
#
cd /var/www/html/websvn/include
cp svnlook.php svnlook.php.`date +"%Y%m%d%H%M%S"`
sed -i 's/\$curLog->path = str_replace/\/\/\$curLog->path = str_replace/g' svnlook.php
